• Air Cooling Radiator
Air Cooling Radiator
+

Air Cooling Radiator

Operating temperature: Maximum operating temperature is 140°C
  • Commodity name： Air Cooling Radiator

Category

Air-Cooled Radiator

Contact Info

37000106@qq.com

Consultation
Recommended

Product Details

Pettern

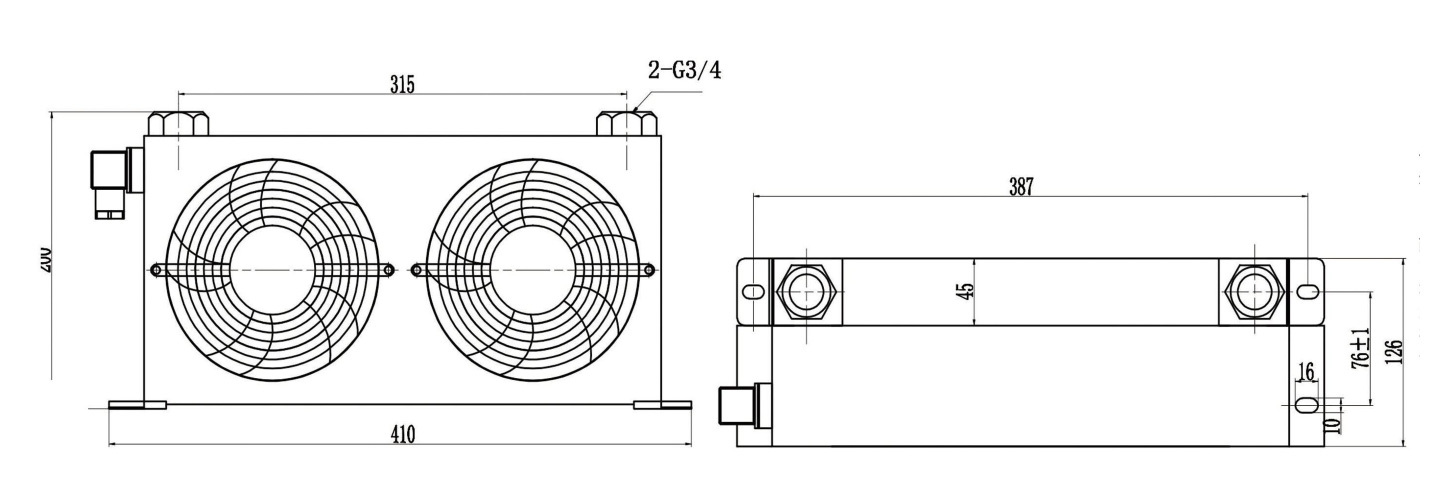

AH0608TL-CA
Rate of Flow
60L/min
Working Pressure
≤2MPa
Fan Power
2x30W
Fan Voltage
AC110V/AC220V/380V/56V/60HZ

Operating Pressure:

AF series: 2MPa, AW series: 2MPa, AH series: 2MPa, HM series: 2MPa, ACE series: 2MPa

Operating temperature: Maximum operating temperature is 140°C

Applicable Media:

1. Mineral oil (anti-wear hydraulic oil)

2. Flame-retardant hydraulic oil (high water base, oil-water emulsion, synthetic fluid)

3. Liquids that do not produce corrosive reactions to aluminum

Piping Notes:

1. Please match the pipe diameter with the thread mouth and cannot be changed or reduced.

2. Use direct connectors or high-pressure hoses as much as possible to reduce oil return resistance.

3. Use hydraulic oil as much as possible. The faster and smoother the oil return, the better the heat dissipation effect.

Air Cooling Radiator

Keywords

Air Cooling Radiator
